Sand Casting

Description

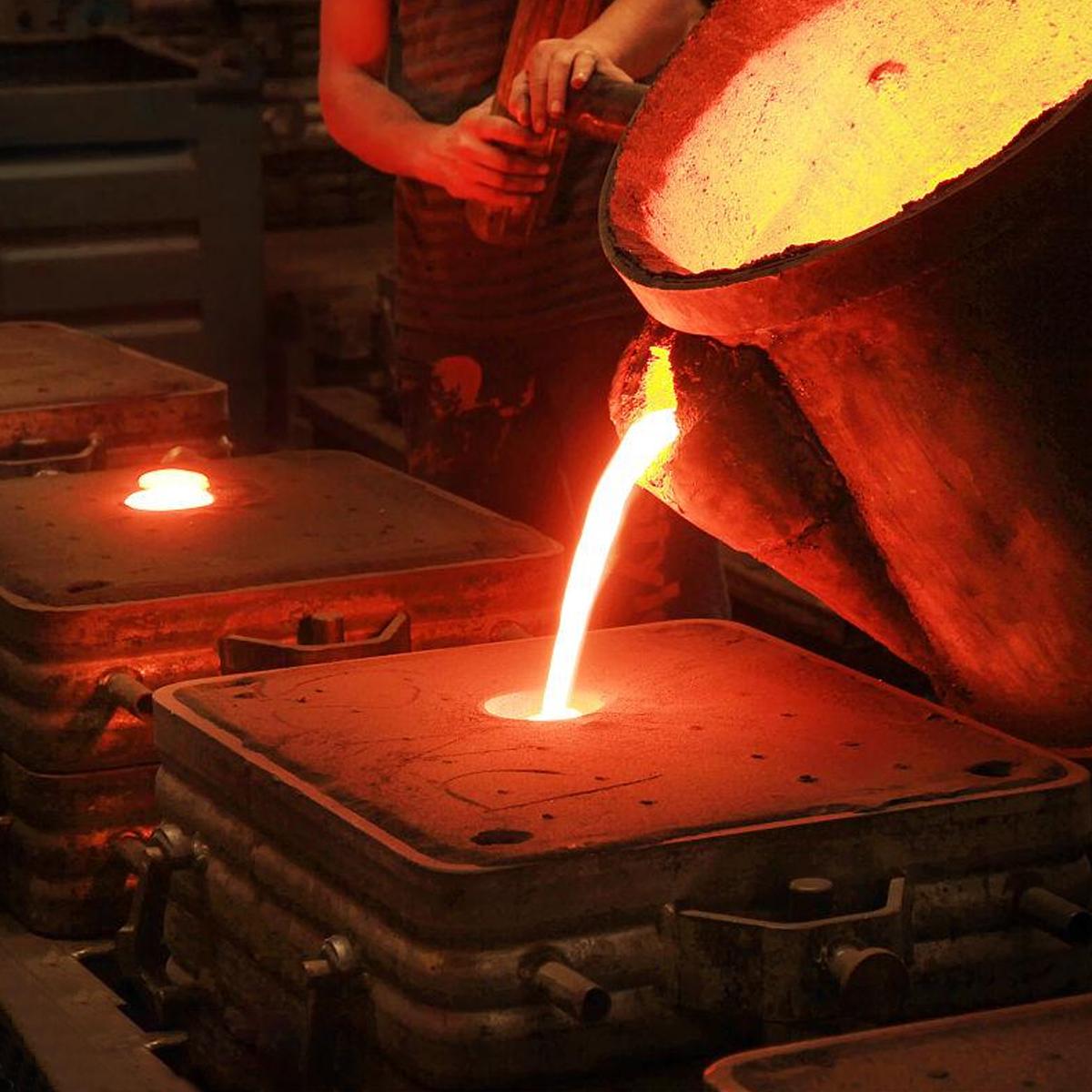

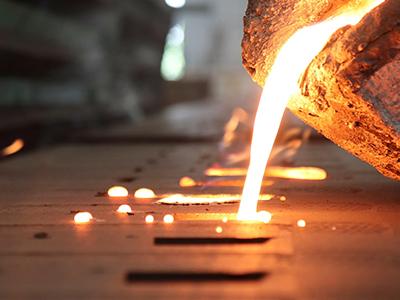

Sand casting, also known as sand molded casting, is one of the oldest and most versatile metal casting processes, characterized by using sand as the primary mold material. This cost-effective manufacturing method involves creating a mold from a sand mixture, typically consisting of silica sand, clay, and water, which is packed around a pattern to form the mold cavity. Sand castings are produced in specialized manufacturing facilities called foundries, where molten metal is poured into the sand mold to create the desired part. This process is particularly well-suited for producing large, complex metal components in low to medium volumes, offering exceptional design flexibility and the ability to cast virtually any metal alloy.

Key Advantages

• Low tooling costs making it economical for prototypes and small production runs
• Suitable for complex shapes including internal cavities and undercuts
• Wide range of sizes from small components to parts weighing several tons
• Compatible with virtually all metal alloys including ferrous and non-ferrous metals
• Flexible design changes with minimal tooling modification required
• Cost-effective for large, heavy parts that would be expensive to machine
• Ability to produce parts with varying wall thicknesses in a single casting
• Short lead times for pattern creation compared to permanent mold tooling

Common Applications

• Engine blocks, cylinder heads, and automotive powertrain components
• Machine tool bases, frames, and structural components

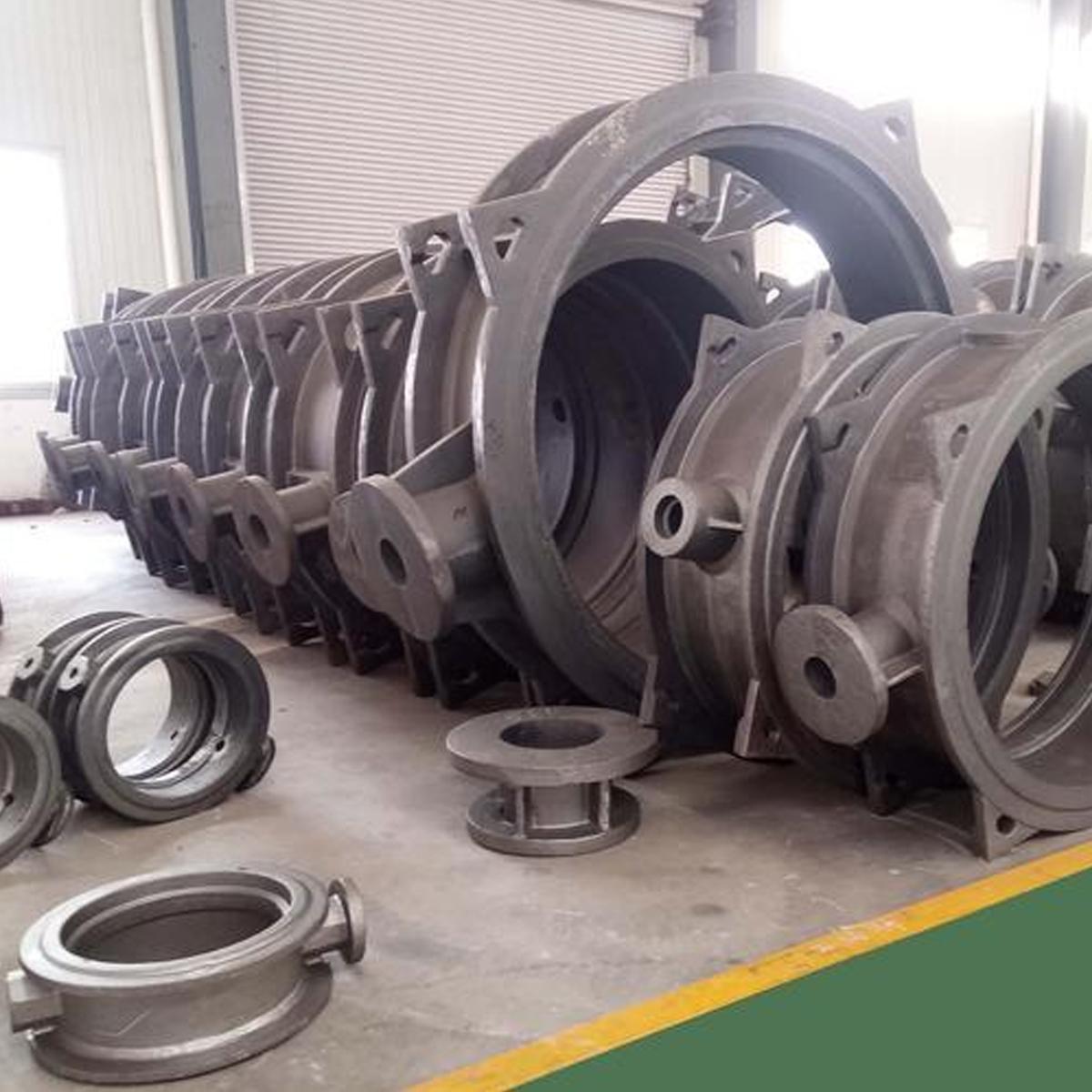

• Pump housings, valve bodies, and fluid handling equipment
• Large industrial machinery components and equipment housings
• Marine engine components and shipbuilding parts
• Construction equipment and heavy machinery parts
• Agricultural machinery components and tractor parts
• Artistic sculptures and architectural metalwork
