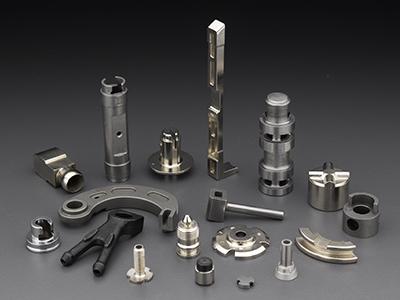

MIM (Metal Injection Molding)

Description

Metal Injection Molding (MIM) is an advanced powder metallurgy manufacturing process that combines the design flexibility and complex geometry capabilities of plastic injection molding with the superior mechanical properties and material integrity of wrought metals. This innovative manufacturing technique utilizes fine metal powders, typically smaller than 20 microns, mixed with a thermoplastic binder system to create a feedstock that can be injection molded into complex shapes. After molding, the binder is removed through a debinding process, and the parts are sintered at high temperatures to achieve near-full density and mechanical properties approaching those of wrought materials. MIM is particularly valuable for producing small, complex metal parts in high volumes that would be extremely difficult or cost-prohibitive to manufacture through traditional machining or casting methods.

Key Advantages

• Complex geometries including undercuts, threads, and intricate features
• High precision with tolerances typically within ±0.3% of dimensions
• Near-wrought properties with densities exceeding 95% of theoretical maximum
• Cost-effective for high-volume production of small, complex parts
• Excellent surface finish requiring minimal post-processing
• Material versatility including stainless steel, tool steel, and exotic alloys
• Ability to produce parts with varying wall thicknesses in single operation
• Reduced material waste compared to machining from solid stock
• Consistent part quality with excellent dimensional repeatability

Common Applications

• Medical instruments including surgical tools, dental instruments, and implantable devices
• Automotive sensors, fuel injector components, and engine management parts
• Firearms components including triggers, safeties, and precision mechanisms
• Consumer electronics components and small mechanical parts
• Aerospace components requiring high strength and complex geometries
• Industrial equipment components and precision mechanisms
• Watch and jewelry components requiring fine detail
• Locking mechanisms and security device components
