Roll Forming

Description

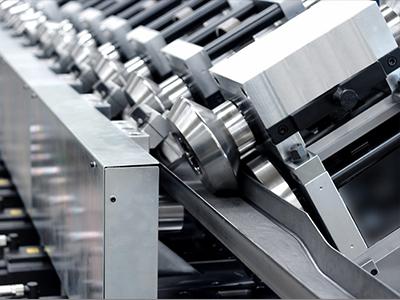

Roll forming is a highly efficient continuous metal forming manufacturing process that transforms flat sheet metal strips into engineered profiles and shapes using a series of consecutive, mated roll stations. As the metal strip progresses through the roll forming line, each station incrementally bends and shapes the material, gradually forming it into the desired cross-sectional profile. This progressive forming approach allows for the creation of complex shapes with consistent cross-sections along the entire length of the part. Roll forming is particularly well-suited for high-volume production of long, continuous profiles, offering exceptional production speeds, material efficiency, and dimensional consistency. The process is widely used in construction, automotive, and industrial applications where consistent, high-quality metal profiles are required.

Key Advantages

• High speed production enabling hundreds of feet per minute
• Cost-effective for long production runs with low per-foot costs
• Complex profiles possible including multi-chamber and closed sections
• Consistent cross-sectional geometry along entire part length
• Minimal material waste through efficient coil utilization
• Ability to incorporate features like embossing, punching, and notching inline
• Superior surface quality with minimal tool marks or defects
• Flexible length production allowing for custom cut-to-length parts
• Compatible with various metals including steel, aluminum, and coated materials

Common Applications

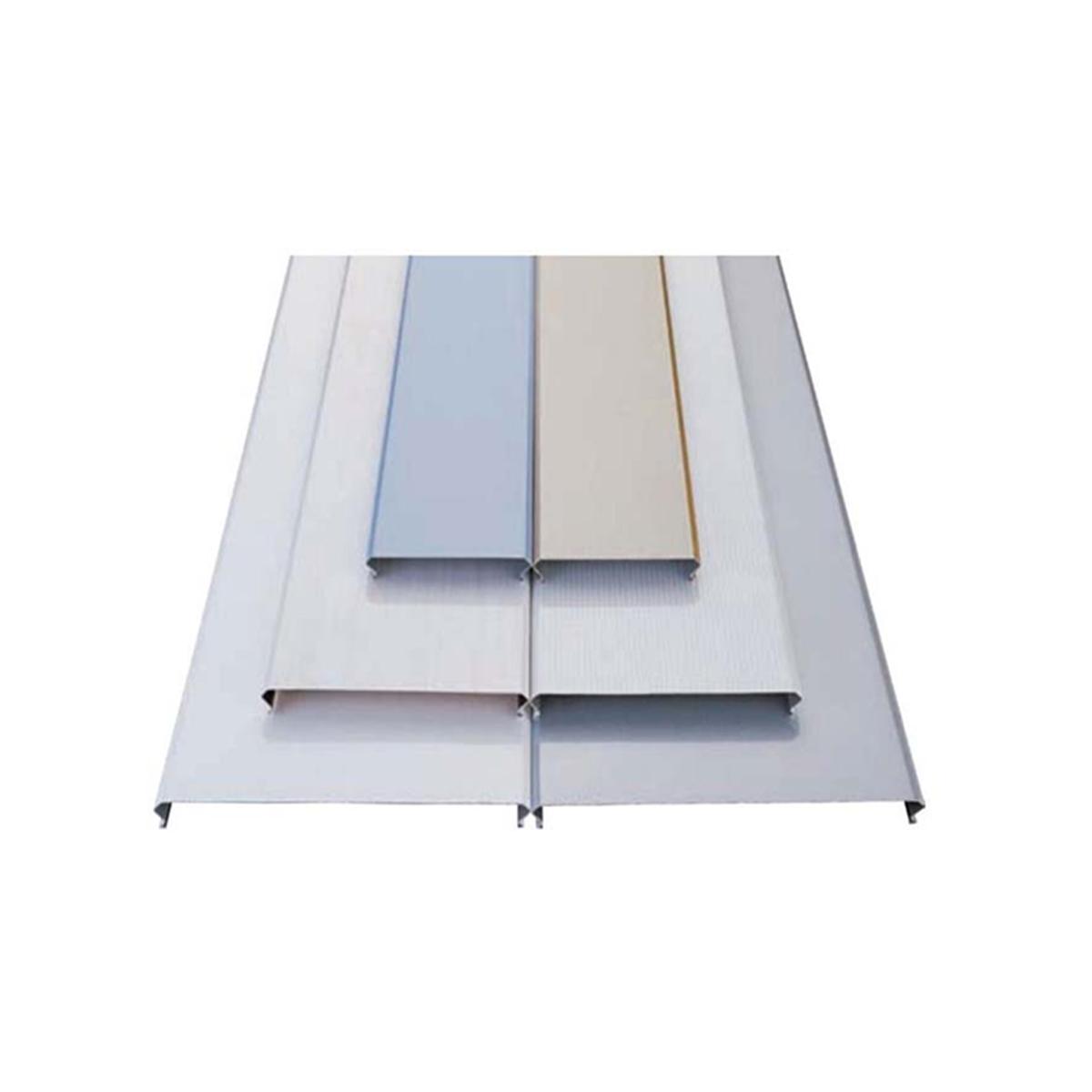

• Roofing panels, wall panels, and architectural cladding systems

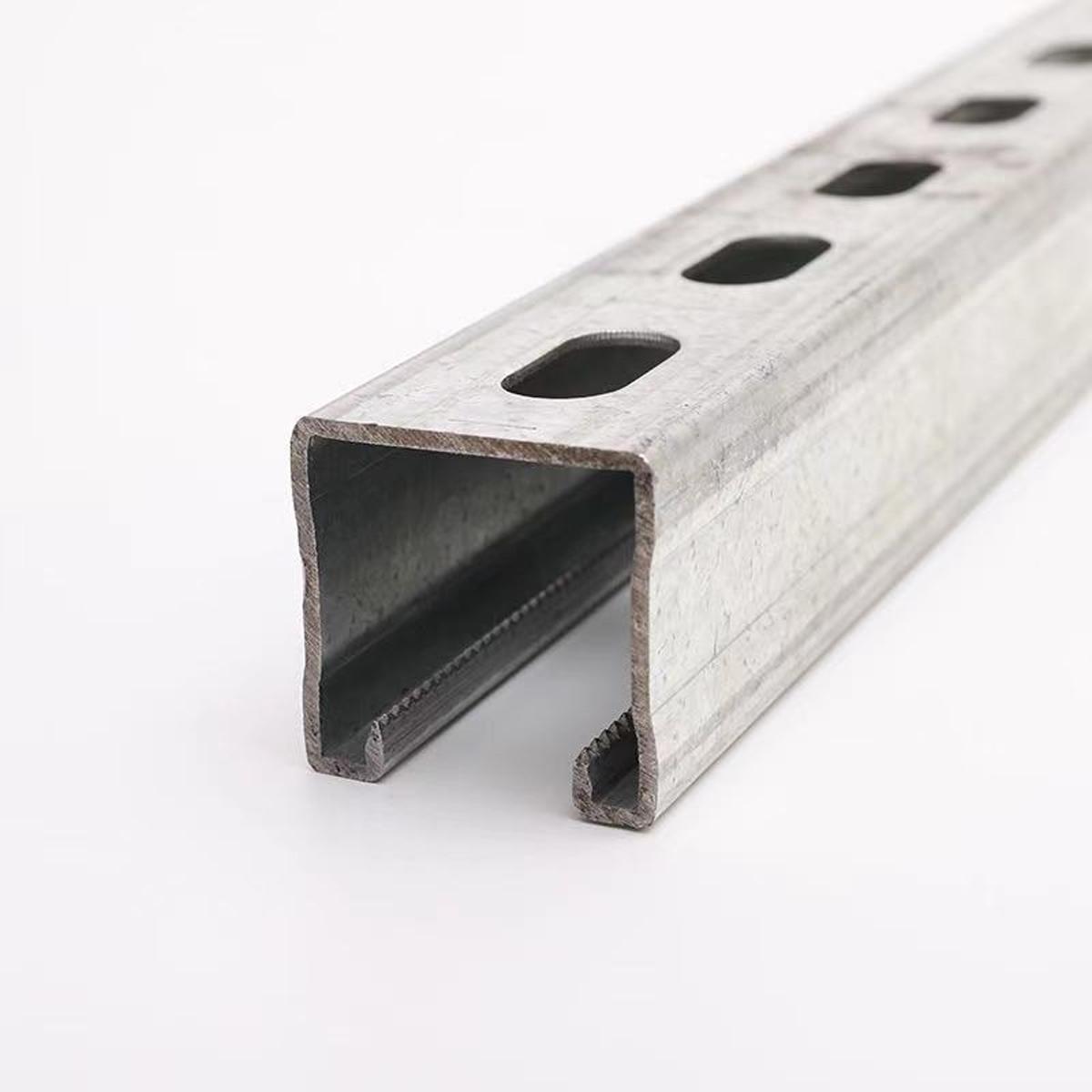

• Structural framing including studs, joists, and purlins
• Automotive components including door frames, window channels, and trim
• HVAC ductwork and air handling system components
• Storage rack systems and material handling equipment
• Fence posts, rails, and perimeter security systems
• Electrical raceways and cable management systems
• Agricultural equipment components and building systems
