Aluminum Extrusion

Description

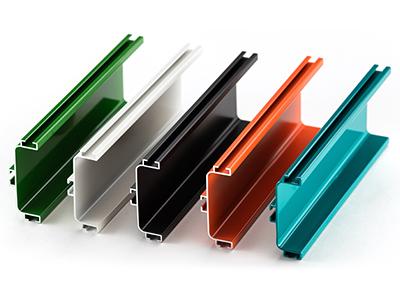

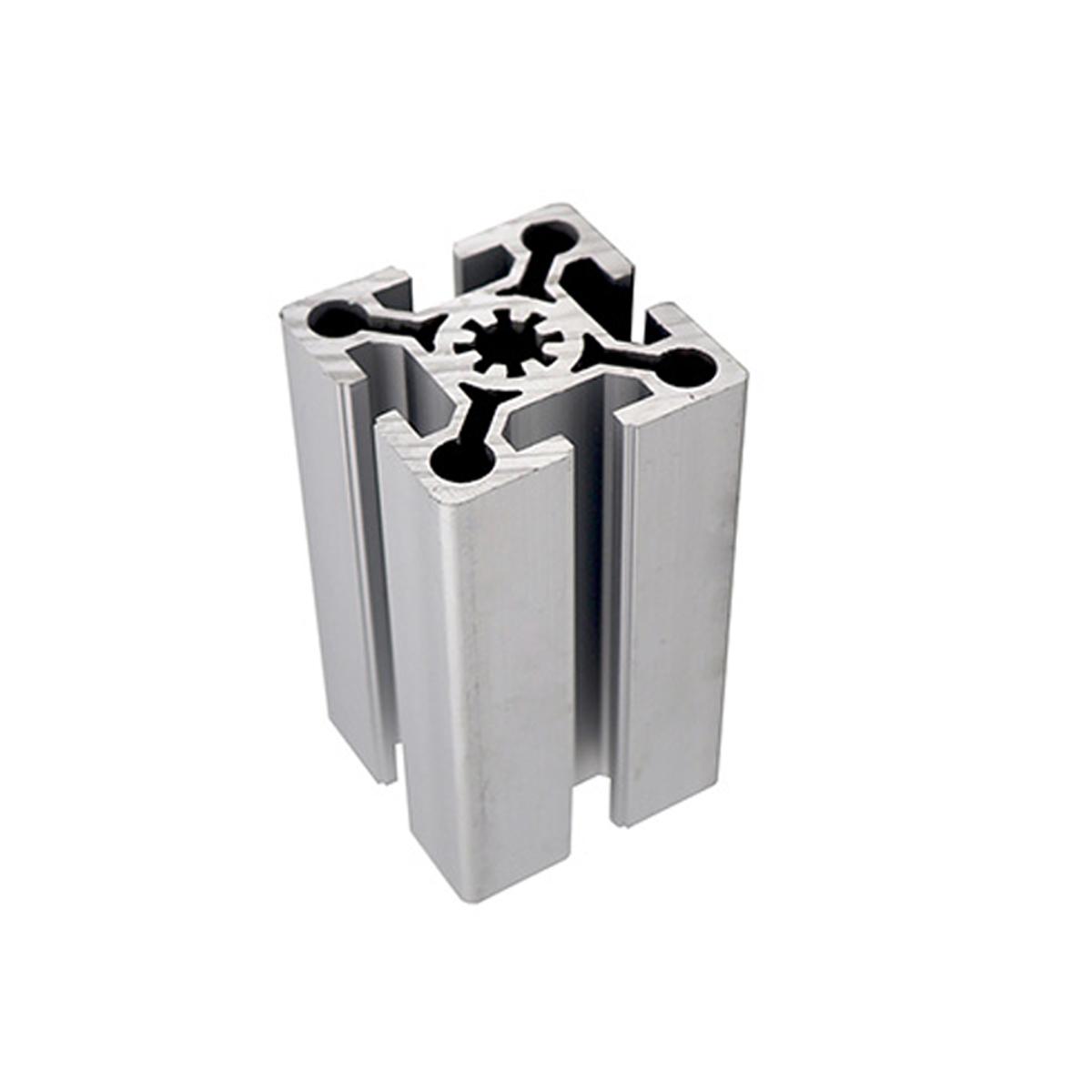

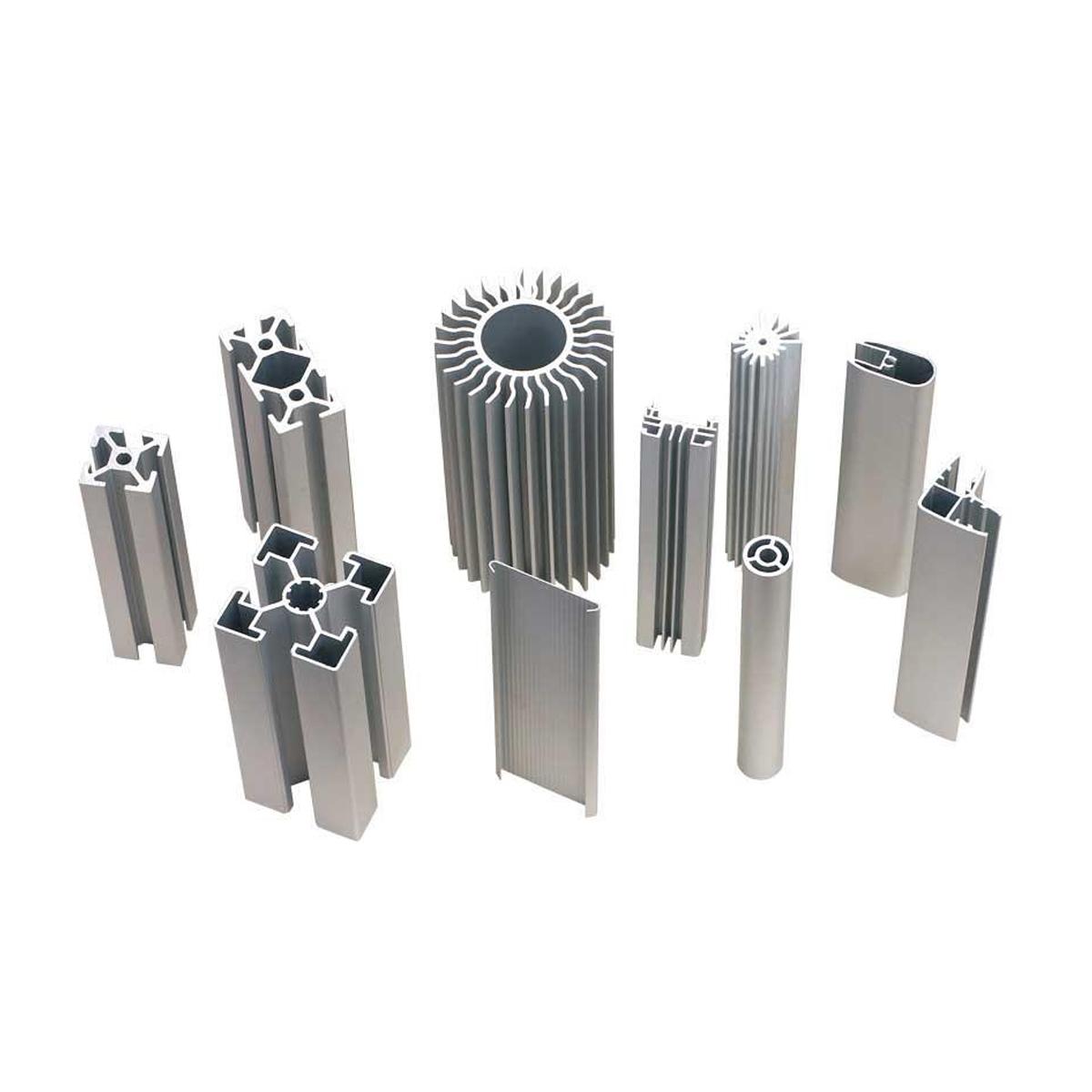

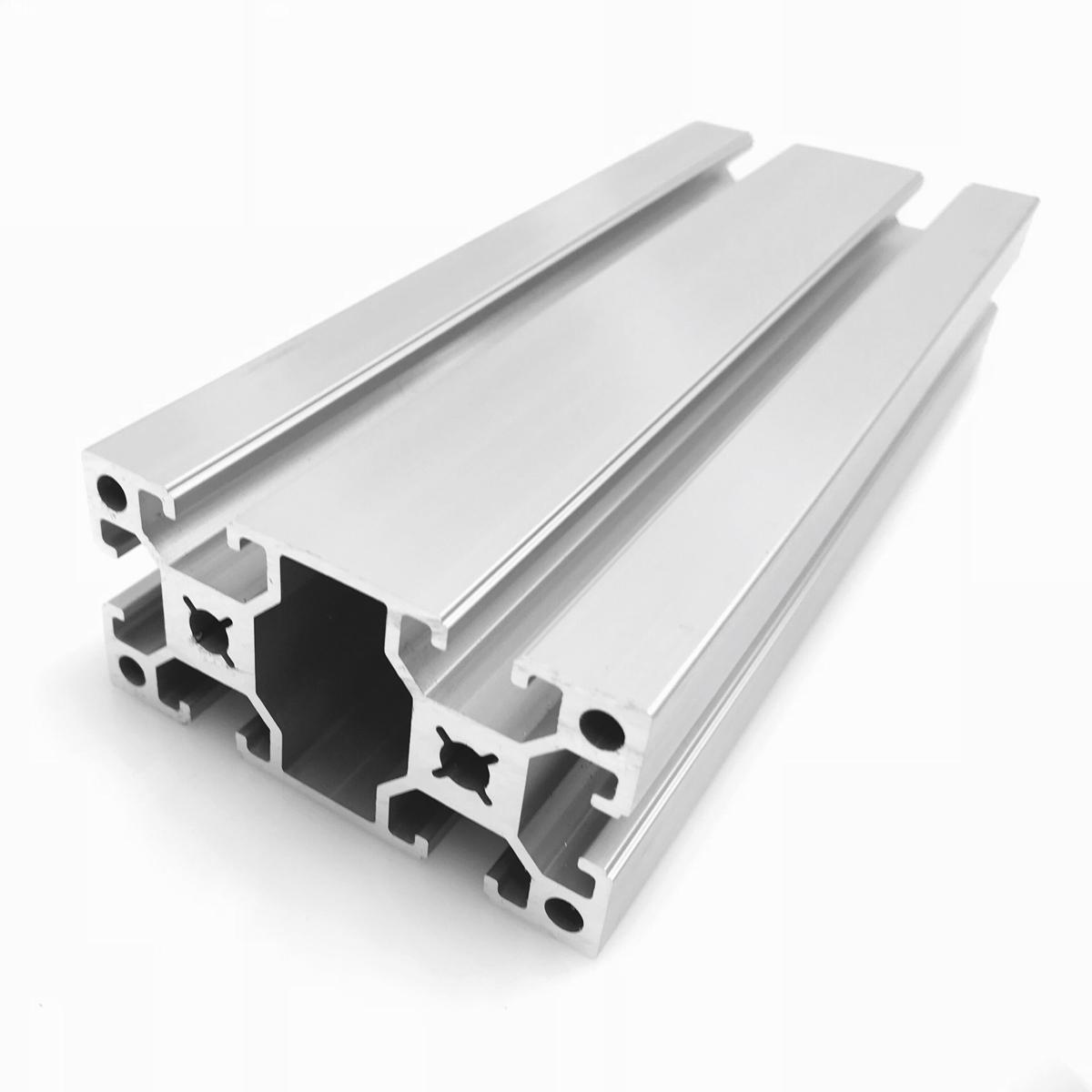

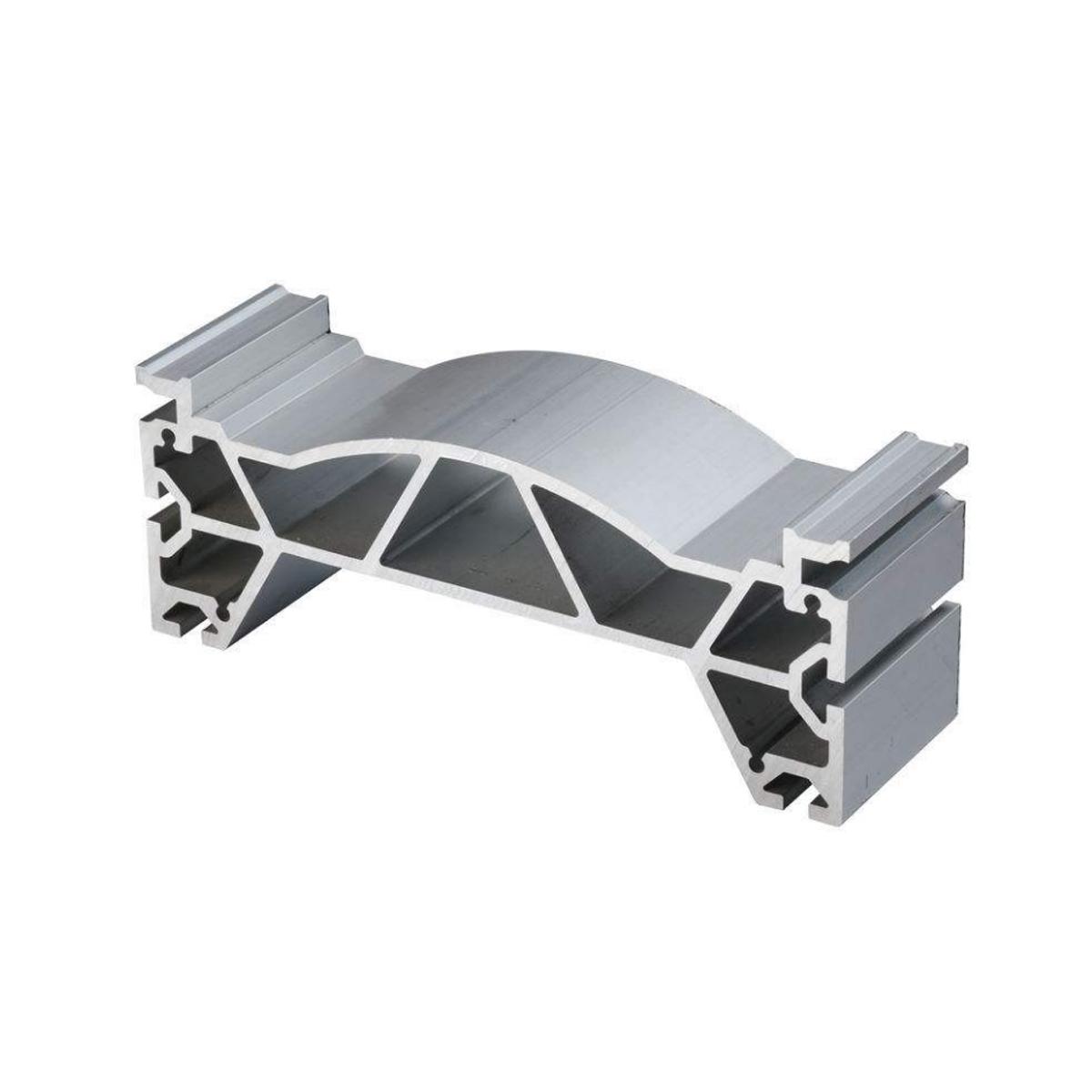

Aluminum extrusion is a highly versatile metal forming manufacturing process where aluminum alloy billets are heated and forced through a precision-machined die with a specific cross-sectional profile using a hydraulic press. As the aluminum material flows through the die opening under extreme pressure, it takes on the exact shape of the die, creating continuous lengths of aluminum profiles with consistent cross-sections. This manufacturing technique is renowned for its ability to produce complex shapes, hollow sections, and multi-chamber profiles that would be difficult or impossible to achieve through other manufacturing methods. Aluminum extrusions offer exceptional design flexibility, making them ideal for applications requiring custom profiles, integrated functionality, and optimized material distribution.

Key Advantages

• Complex cross-sections possible including hollow, multi-chamber, and intricate designs
• Excellent surface finish with smooth, uniform surfaces requiring minimal finishing
• High strength-to-weight ratio making aluminum extrusions ideal for lightweight applications
• Design flexibility allowing for custom profiles tailored to specific applications
• Cost-effective tooling compared to other metal forming processes
• Ability to incorporate multiple functions into a single extruded profile
• Excellent thermal and electrical conductivity properties
• Superior corrosion resistance with optional anodizing or powder coating
• Long continuous lengths reducing the need for joints and connections

Common Applications

• Architectural frames, window systems, curtain walls, and building facades
• Automotive structures including chassis components, bumpers, and body panels
• Aerospace components such as aircraft fuselage sections and structural members
• Heat sinks and thermal management systems for electronics
• LED lighting fixtures and lighting system components
• Furniture frames, display systems, and retail fixtures
• Solar panel mounting systems and renewable energy structures
• Transportation equipment including rail cars, trailers, and shipping containers
