Aluminum Extrusion Tolerance Calculator

Compare standard and precision profile dimension allowances, understand the full tolerance band, and check a measured size. Metric and inch inputs; shareable results and printable summaries.

Reference scope: local ANSI H35.2(M)–2017 Table 11.2 records for cross-sectional profile dimensions. This is a dimensional screening tool; EN 755 and EN 12020 use different tables. Straightness, twist, cut length and angularity are outside this lookup.

The circumscribing circle is the smallest circle containing the complete cross-section. Use its diameter, not the perimeter. The bands remain in mm when the measured dimension uses inches; 250 mm = 9.84252 inches.

For enclosed-space wall thickness (column 3), confirm the table’s enclosed-area and temper applicability. The local model does not check these conditions automatically. The reference image excludes T3510, T4510, T6510, T73510, T76510 and T8510 tempers.

Select the right profile parameters

Circle diameter CDOpen space

A solid wall dimension differs from a gap across two legs. A tube has enclosed space; a U channel is open. For open-space dimensions, the distance from the measured point to the supporting leg base influences the lookup column.

Verified local-model examples

All examples use a circle ≤250 mm and metric dimensions. Local records and API checked on 2026-11-02; these are reference examples, not a standard certification.

  • 50 mm predominantly metal dimension, open profile, non-5xxx: standard ±0.36 mm, precision ±0.24 mm; standard limits 49.64–50.36 mm.
  • Same inputs with 5xxx selected: standard ±0.54 mm, precision ±0.36 mm after the local 1.5 multiplier.
  • 2 mm enclosed-space wall, non-5xxx: column 3 returns ±0.25 mm for both levels because the minimum controls. Check the enclosed-area and temper conditions before applying it.

Reference and maintenance

The existing reference image identifies ANSI H35.2(M)–2017 Table 11.2. The calculator uses local transcribed tables and rules; this update improves presentation and workflow without changing their tolerance values. Maintained by Custom Parts Factory; interface/model presentation v1.1, updated 2026-11-02. Named engineering reviewer: not recorded. Verify the applicable edition, notes and contractual requirements separately.

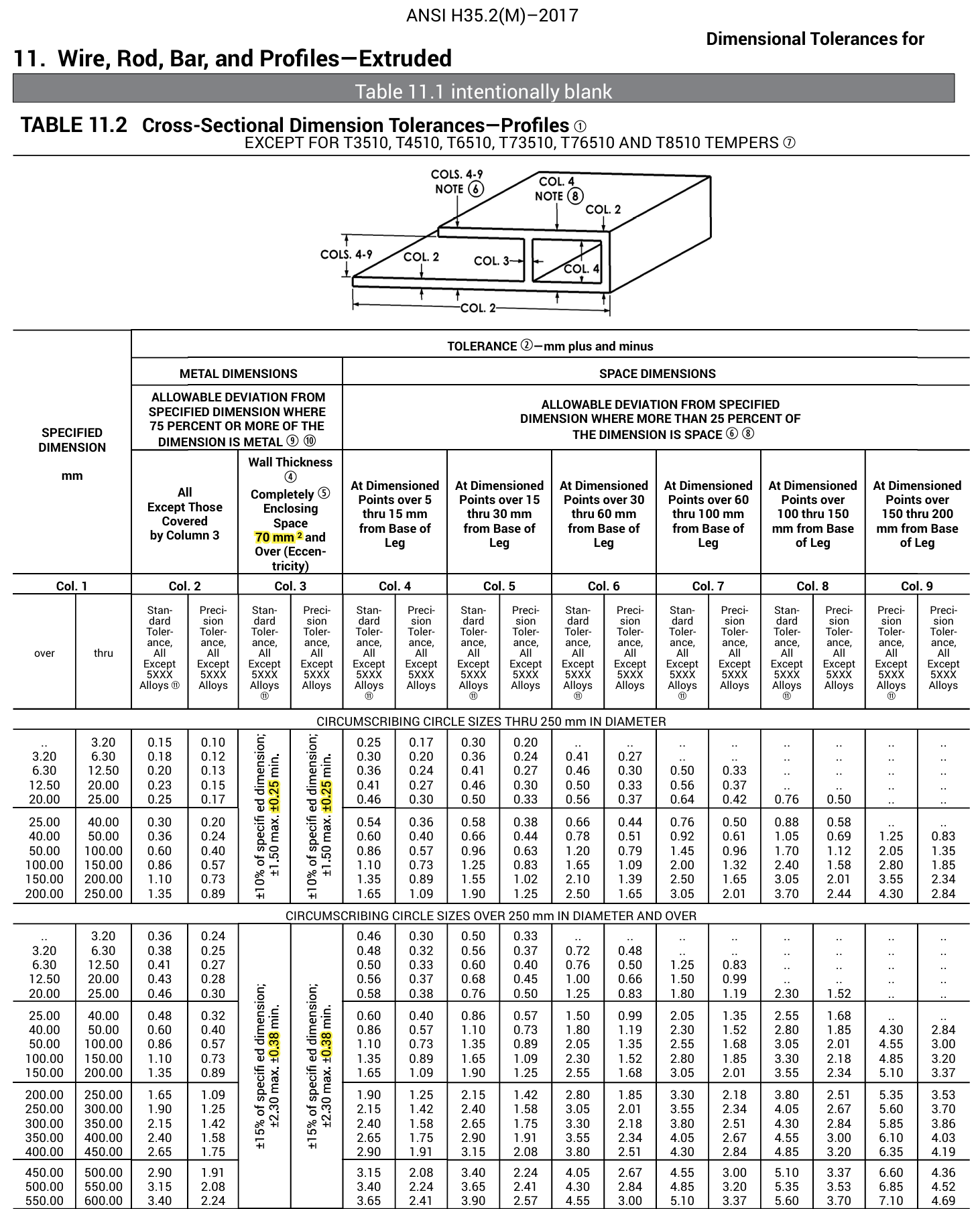

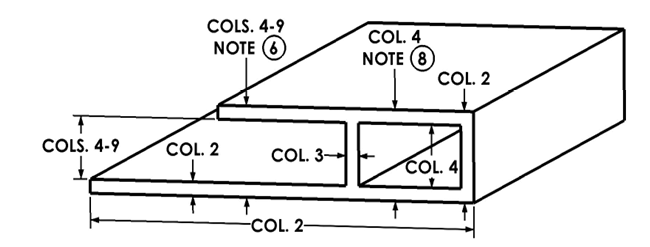

View existing source diagram and table recordExisting profile dimension column diagramExisting ANSI H35.2(M)-2017 Table 11.2 reference record
